Structural and Surface Characterization - [Transmission Electron Microscopy]

   CONTACT: Laura Lazzarini (laura.lazzarini@imem.cnr.it, tel 0521-269203)

Setup

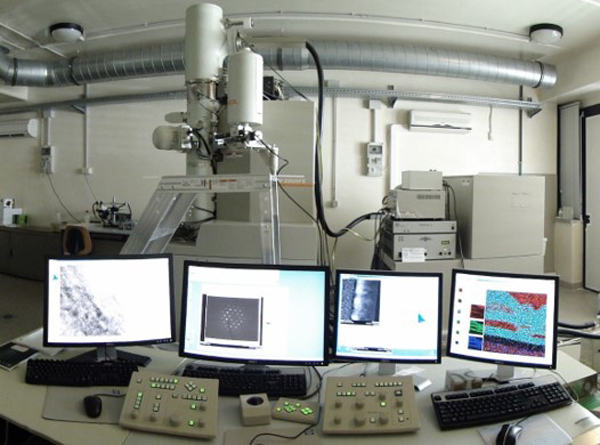

TEM JEOL JEM-2200FS with Schottky field emission gun. Performance:

• operating voltage: 80 kV, 200 kV
• point resolution: 0.183 nm (TEM), 0.132 nm (STEM)
• in column Omega filter
• two High Angle Annular Dark Field detectors (Z-contrast)
• Oxford detector (80 mm²) for EDX spectroscopy and imaging

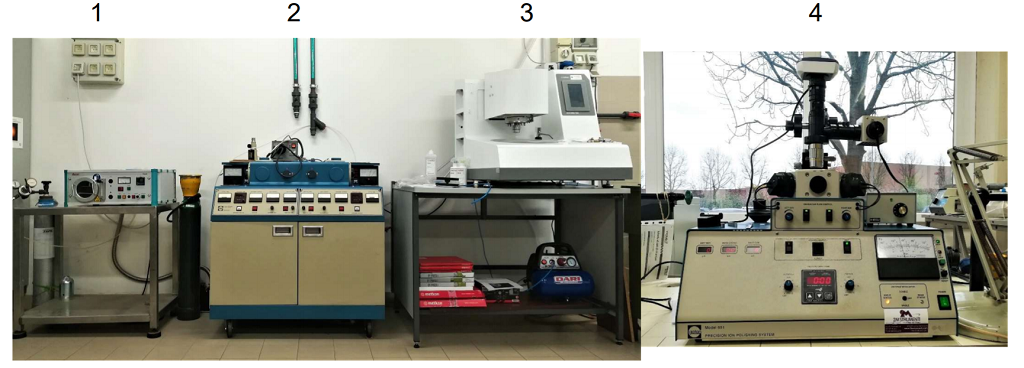

For sample preparation:

1. Plasma cleaner Femto (Diener Electronic) ; 2. Duo-Mill Ion Milling System (Gatan) ; 3. Advanced Grinding and Polishing System Accura 102 (Metkon) ; 4. Precision Ion Polishing System (PIPS), Mod 691 (Gatan). The equipment also includes a Buehler precision saw and a Gatan Dimple Grinder system.

Method

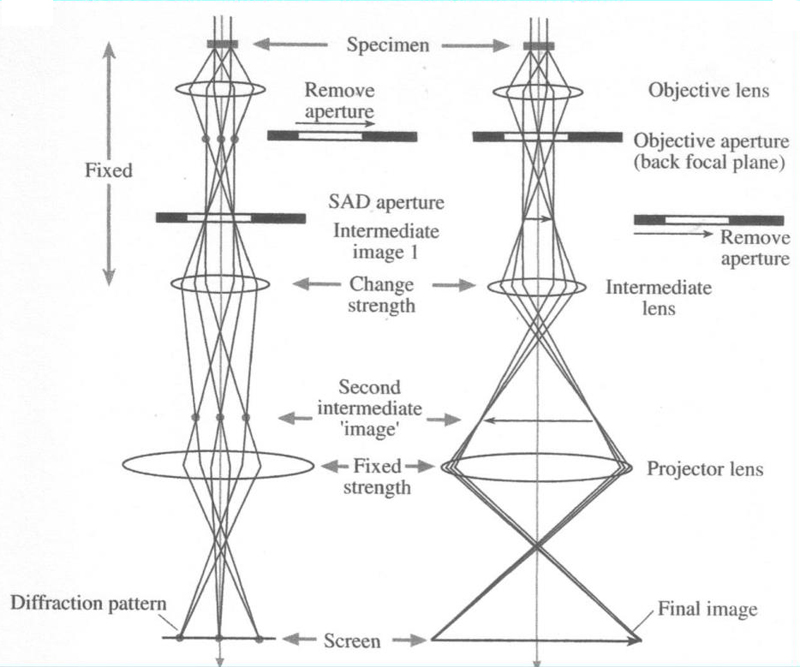

In TEM / HRTEM working mode, a parallel electron beam is used. It illuminates a region of interest of the material to be analyzed, suitably thinned or in the form of a nanostructure. The electron diffraction pattern and the image of the sample - in amplitude (brightfield) or phase (high resolution, HRTEM) contrast - are reconstructed, through a system of electromagnetic lenses, from the electrons, transmitted and diffracted, which have passed through the material.

In STEM mode, a convergent electron beam is scanned over a region of interest (area, line, spot). An annular detector allows the collection of high angle scattered electrons - this technique is also called High Angle Annular Dark Field (HAADF) - used for the formation of images with atomic number contrast (Z-contrast).

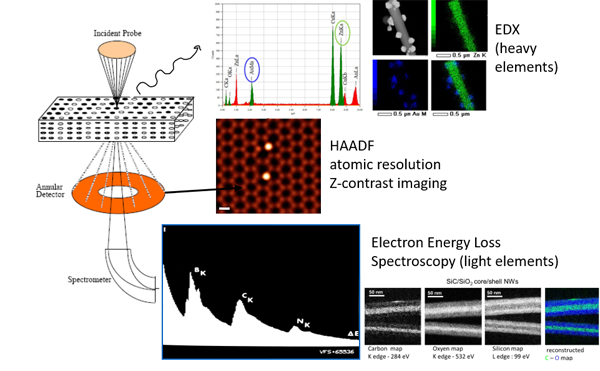

In both TEM and STEM mode, analytical techniques are also available:

• EDX spectroscopy and chemical mapping of elements. An X-ray detector placed above the sample allows the collection and the energy dispersion of the characteristic radiation emitted by the material, for spectroscopic investigations, compositional quantification and imaging of the spatial distribution of the elements.
• Electron Energy Loss Spectroscopy (EELS). By means of the in-column Omega filter, it is possible to analyze the electron dispersion in energy as a consequence of the interactions - elastic (zero-loss) and inelastic (e.g. ionization of the atomic shells, core-loss) - with the material passed through. The acquisition of EELS spectra and energy filtered images (EFTEM) is particularly interesting for the study of plasmonic modes, the valence state of some elements (e.g. Fe in oxides) and the presence and spatial distribution of light elements (e.g. C, N).

Lorentz  microscopy (LM)  is a method to map the in-plane magnetic induction in the thin foil. The technique is based on retrieving the phase distribution of the electron wave function by measuring the intensity distribution derivative along the beam propagation direction (through a series of images taken at different defocus values). To preserve the magnetic microstructure of the sample, the Lorentz microscopy is performed turning off the objective lens, thus limiting the spatial resolution to some nm.

Highlights

TEM techniques applied to magnetic materials

Advanced transmission electron microscopy techniques, including STEM-HAADF, HR-TEM and Lorentz microscopy, together with magnetic force microscopy (MFM-link), represent a powerful tool for the study of nanostructured magnetic materials. They can be employed to correlate the material properties at the macroscopic scale with the structural and magnetic properties at the micro- and nano-scale

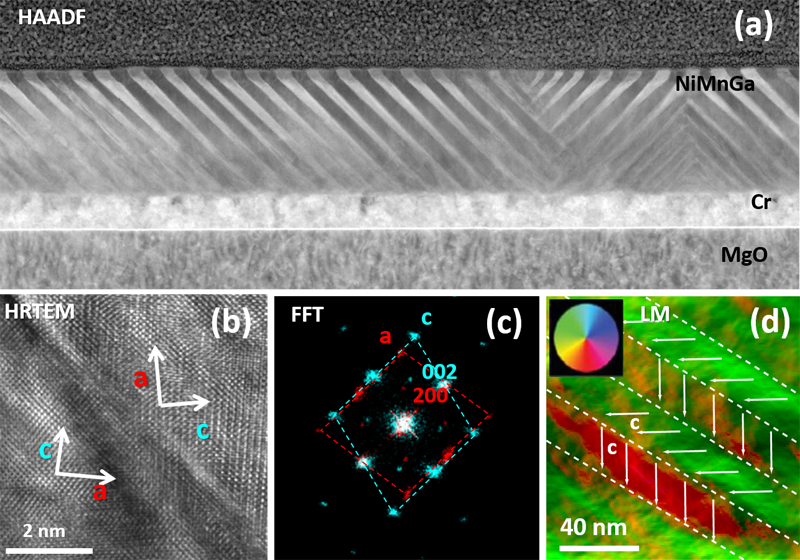

Analysis of 7M NiMnGa thin films of Cr/MgO. (a) Cross section STEM-HAADF image of the twinned film. HR-TEM and FFT analyses (b, c) show that the twin boundaries switch the  easy  magnetization axis “c” from out-of-plane to in-plane. Lorentz microscopy (d) provides the direct evidence of the magnetic domain configuration at the nanoscale.
Refs: Acta materialia 2020, Advanced Materials 2015

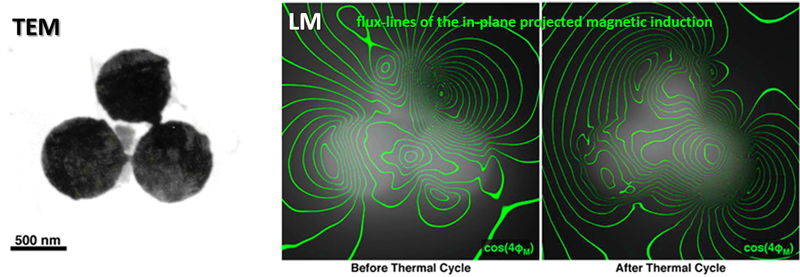

Magnetic flux-lines in freestanding NiMnGa disks. Ref: Small 2018

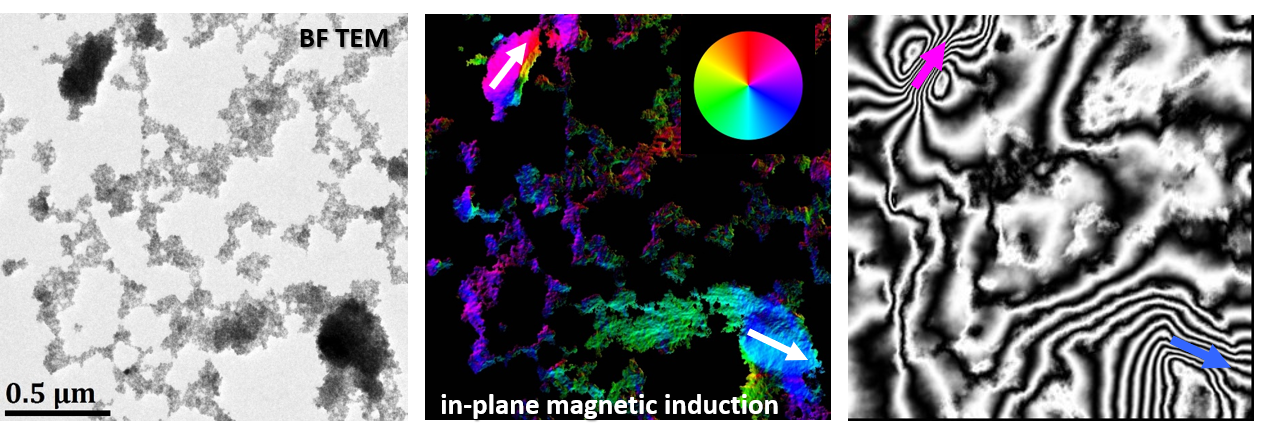

Lorentz microscopy of clusters of Fe3O4 nanoparticles. The images show strong dipolar-like interactions between the ferromagnetic nanoparticles in big clusters. Ref: Nanoscale  2015



TEM techniques applied to nanowires

(click here to see the high resolution image)

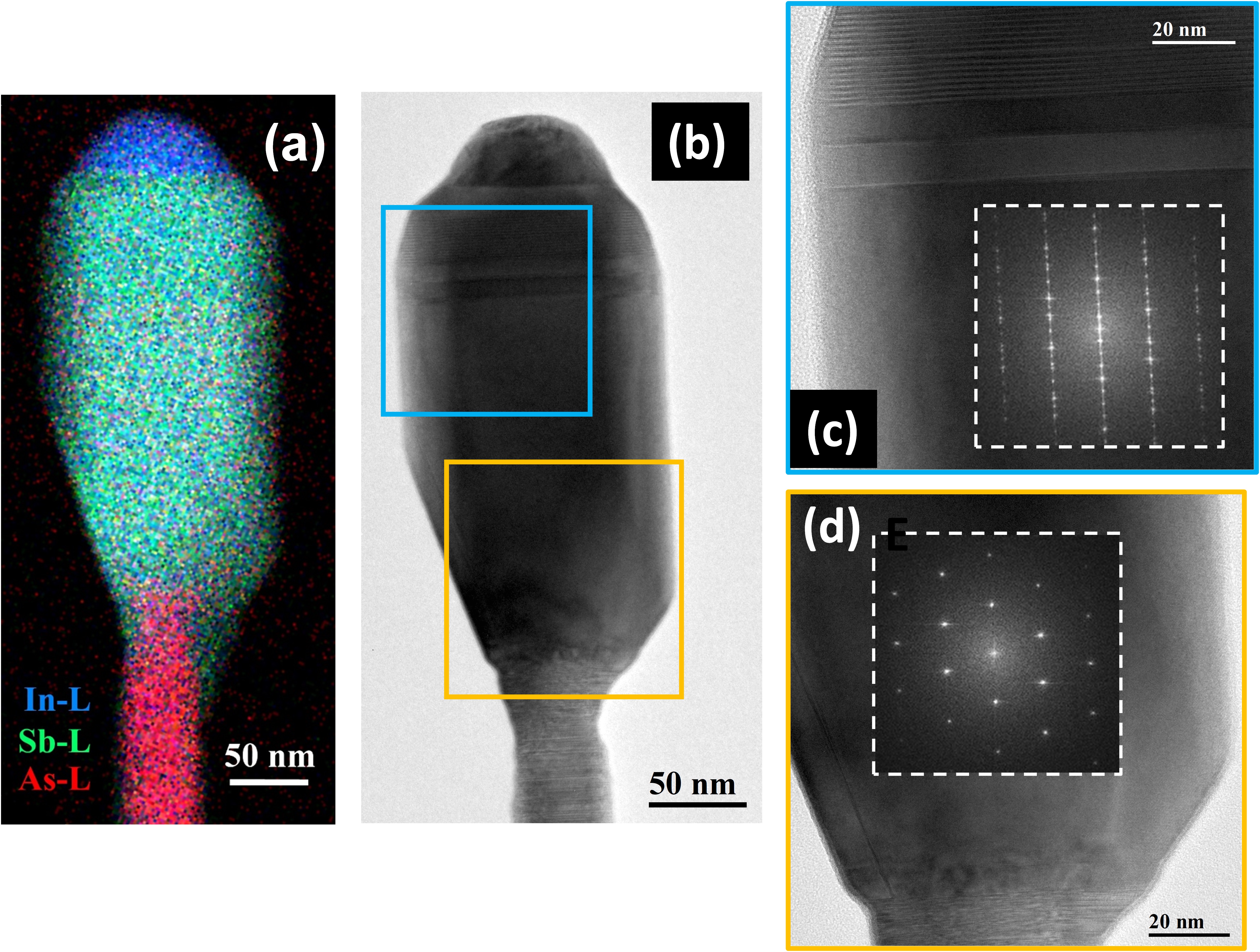

Analysis of nanowires with InAs/InSb axial heterostructure. (a) EDX map of a representative NW (magenta: InAs base, green: InSb body, blu: In tip; (b–d) HR-TEM images and corresponding FFTs (insets). Ref: Nanomaterials 2020



Analysis of core/shell/shell InAs/InP/GaAsSb nanowires having a different InP shell thickness. The method of Geometrical Phase Analysis (GPA) is applied to HR-STEM images (a, d, g) to obtain strain maps ε_xx (b, e, h) and ε_yy (c, f, i). The plots show εyy  line profiles across the interfaces. Ref: Cryst. Growth Des. 2020

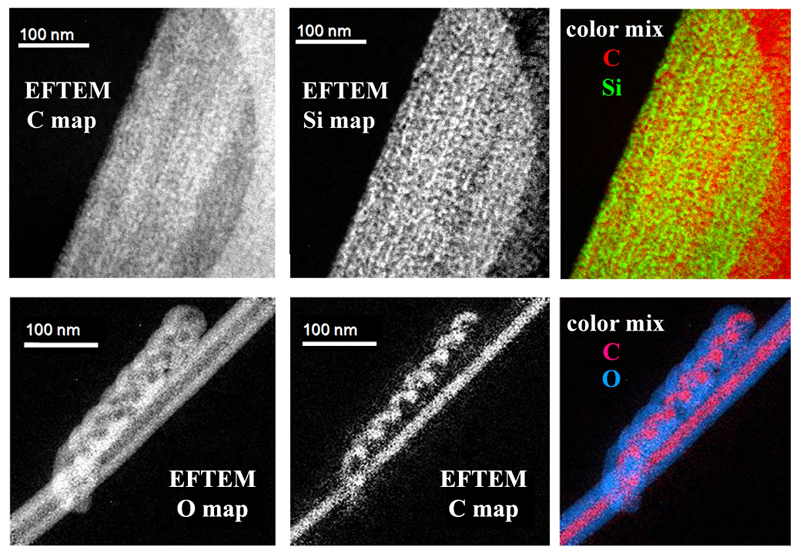

Elemental maps obtained by energy filtering. Top line: analysis of porous carbonised silicon nanowires - Ref: Energy & Environmental Science 2017 Bottom line: analysis of core/shell SiC/SiO_x nanowires - Ref: J Appl Phys 2019

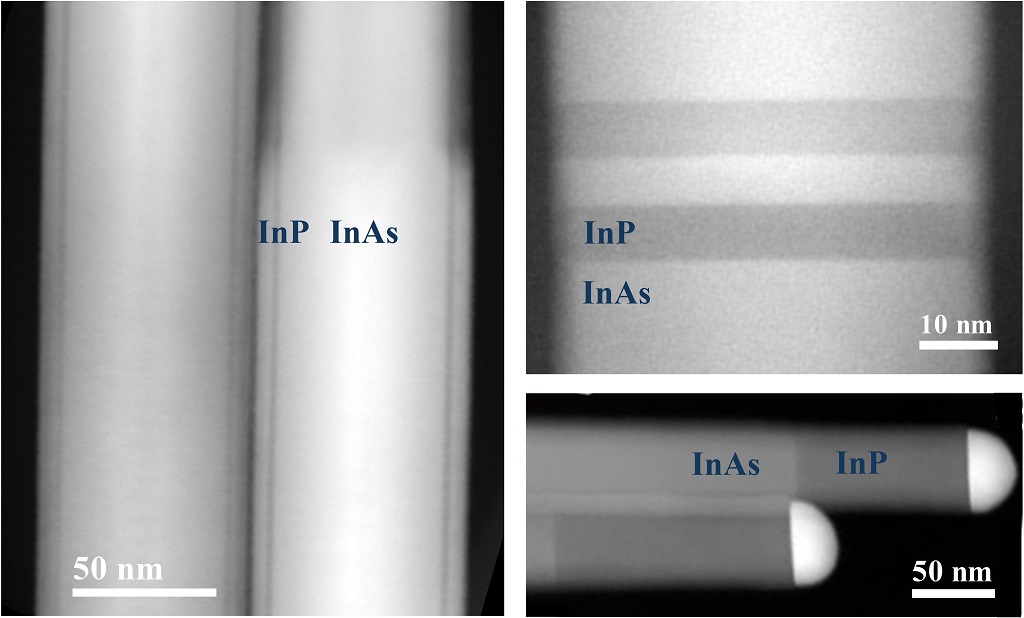

STEM-HAADF analysis of nanowires having radial or axial heterostructure. Refs: Nanotechnology 2019, Nano Lett. 2018



Identification of the hexagonal phase in Silicon nanowires. Ref: Nano Lett. 2013

Hexagonal silicon has very promising optical properties, but it is difficult to prove the hexagonal phase by high resolution TEM techniques. In fact, defects in cubic silicon, for instance planar twins orthogonal to the 111 direction (upper left), viewed along particular directions, produce patterns that are similar to those of the hexagonal polytype. While the diffraction pattern is identical, the high resolution image is different, as clearly showed by simulations (bottom left). The experimental image on the right, compared to the simulations, allows to remove any ambiguity and to identify the hexagonal phase in Si NWs.

---

TEM-EELS spectroscopy of plasmon resonances in composite systems of nanostructured materials

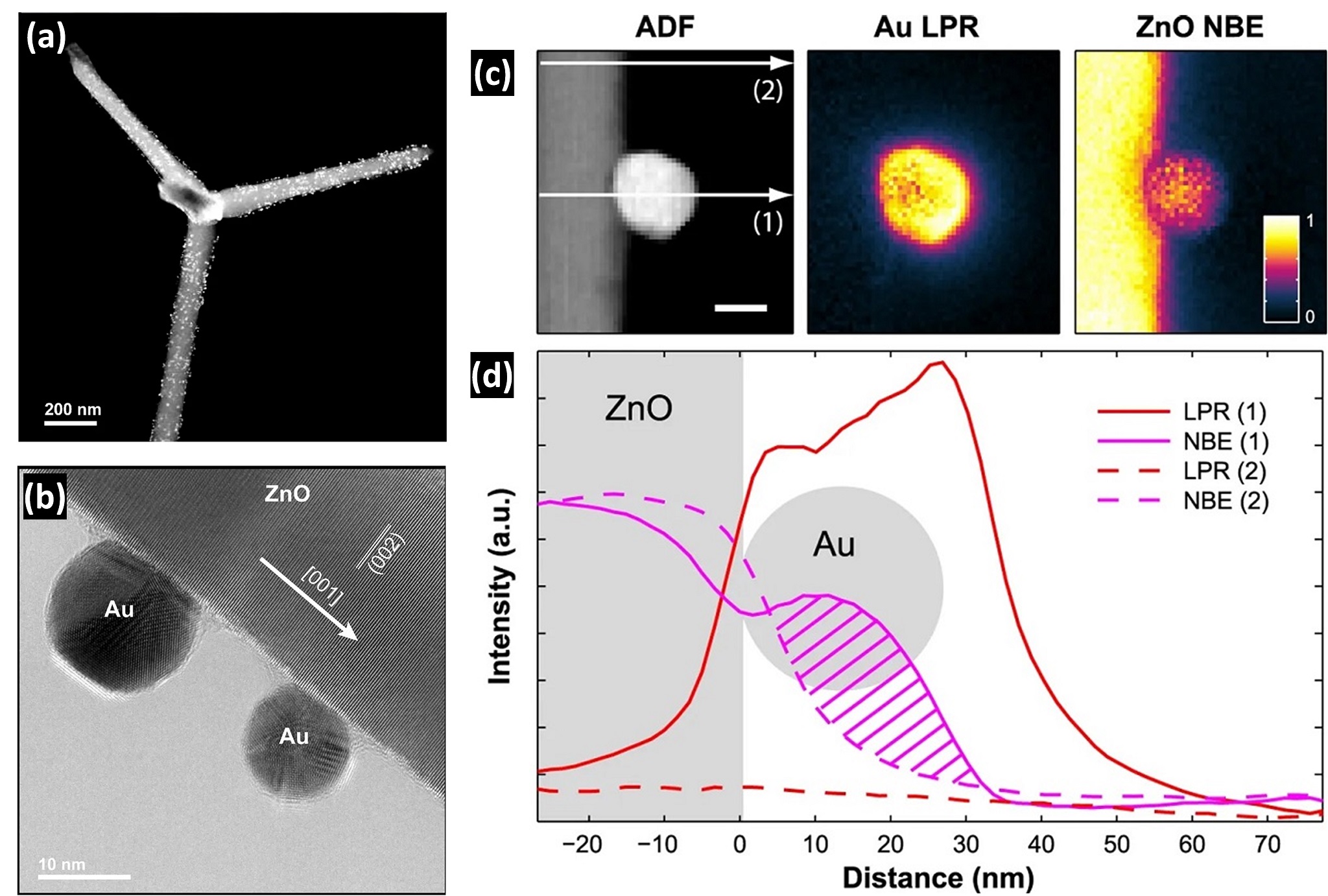

Experimental visualisation of the electromagnetic coupling between the plasmonic resonance (LPR) of a gold NP and the exciton (NBE) of its ZnO support by means of spatial mapping of the two emission distriìbutions. Ref: Sci. Rep. 2016

---

TEM techniques applied to multilayered solar cells

Analysis of photovoltaic cells

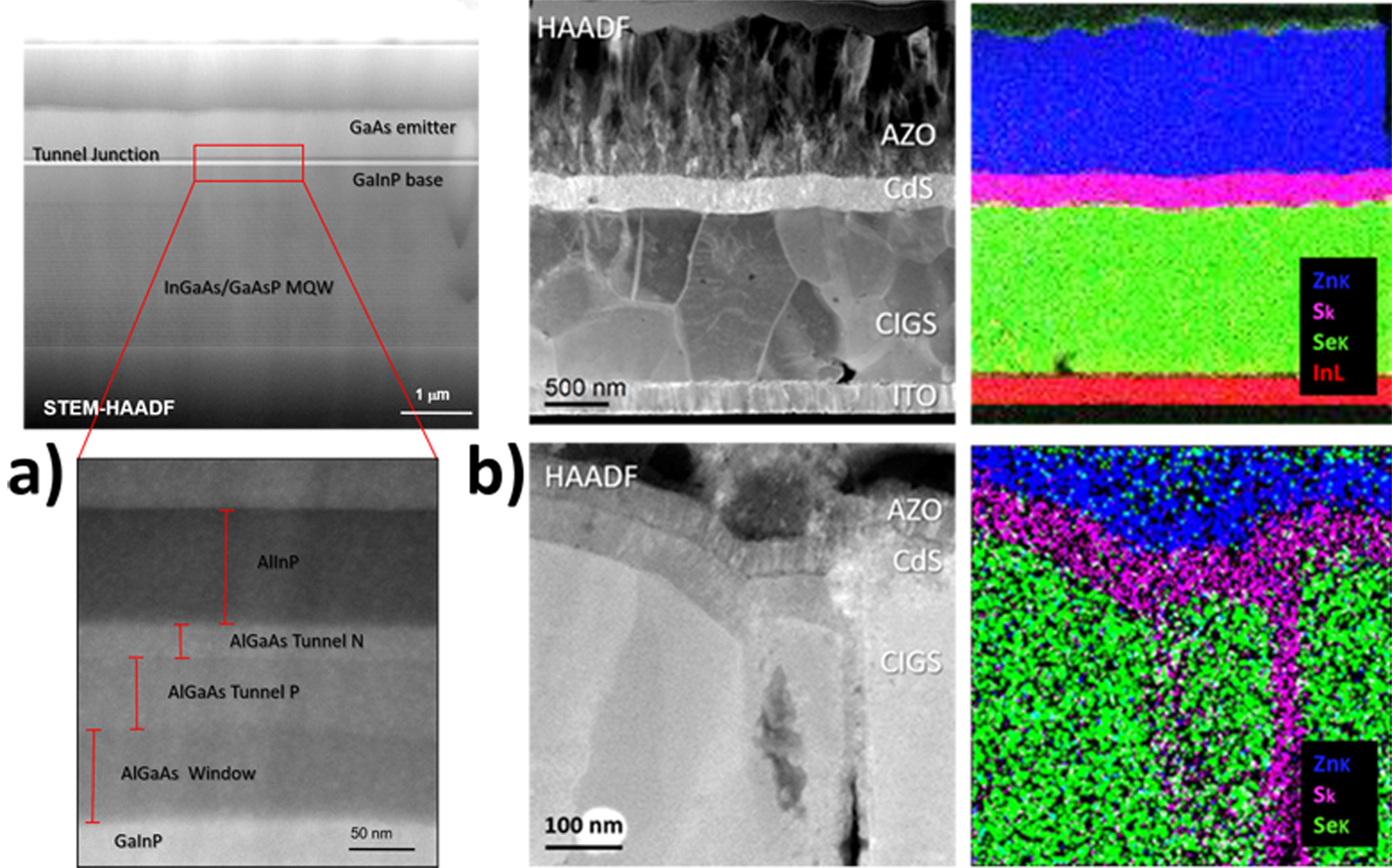

a) STEM-HAADF images of a III-V third generation MQW solar cell; b) Analysis of solar cells based on CIGS. The figure shows STEM-HAADF images of selected regions of the solar cell and the corresponding EDX elemental maps of Zn, S, Se and In.

---

TEM techniques applied to Carbon nanostructures

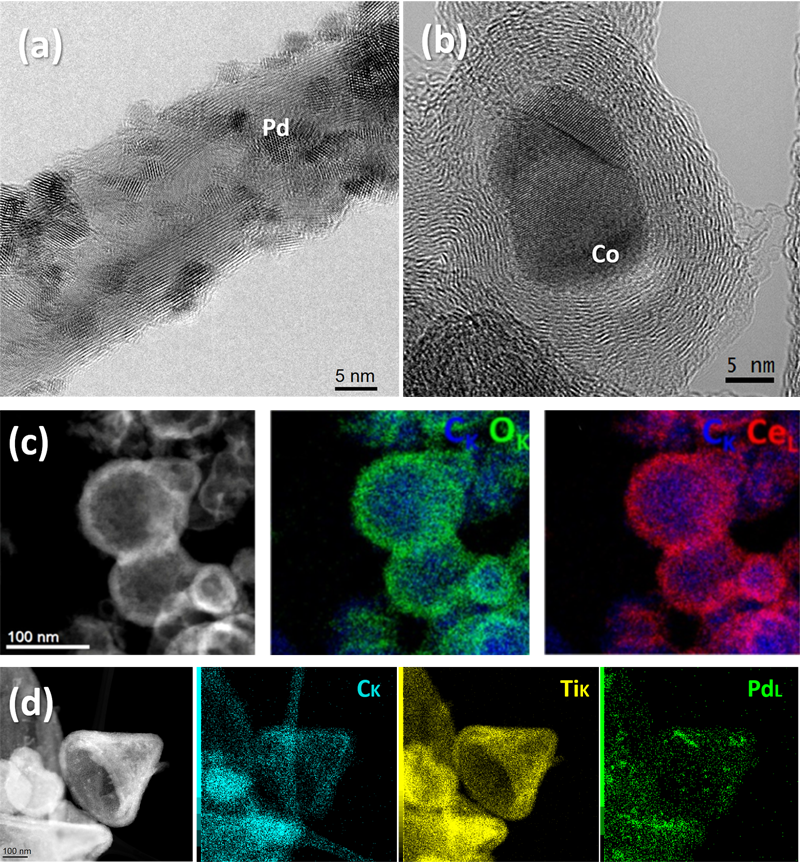

Analysis of hybrid systems based on carbon nanostructures, metal nanoparticles and  metal oxides for electrocatalytic applications. a) HR-TEM image of a cobalt @ graphitic carbon core-shell nanostructure; b) HR-TEM image of a CNT/Pd@TiO₂ nanostructure; c) STEM-HAAD image and corresponding EDX maps of carbon@CeO₂ NanoHorns systems; d) STEM-HAAD iamge and corresponding EDX maps of carbon/Pd@TiO₂ NanoCones. Refs: Sensors and Actuators B: Chemical 2017, CHEMSUSCHEM 2019, NATURE COMMUNICATIONS 2016, CHEMICAL COMMUNICATIONS 2016

project NANOREDOX- PRIN 2017

---

TEM imaging of organic materials

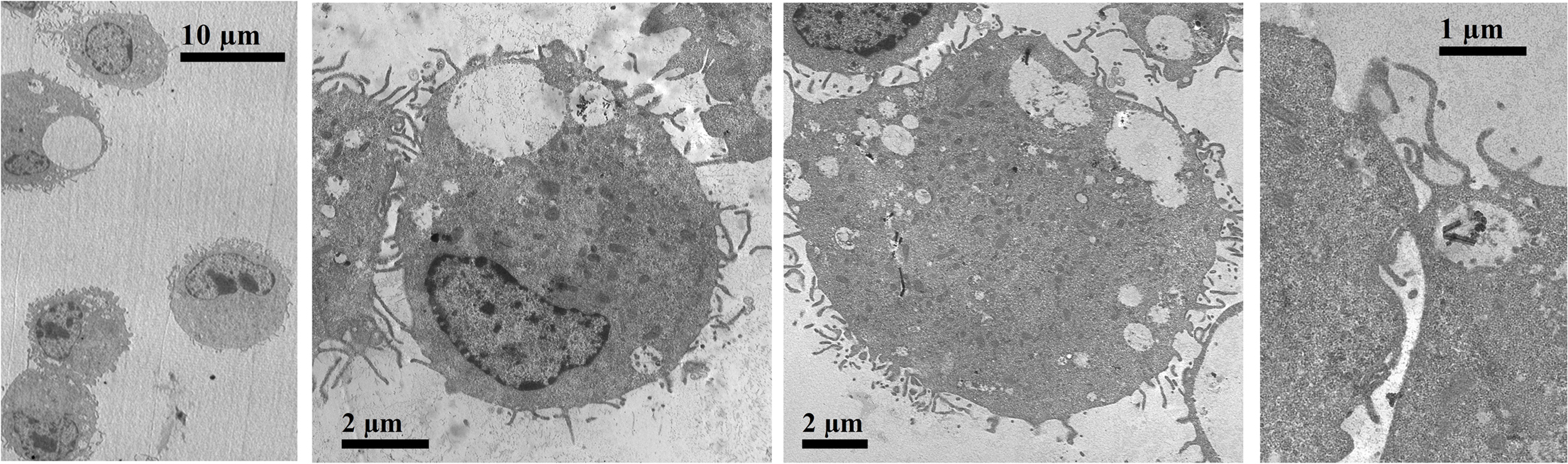

TEM imaging (working voltage 80 kV) of cells treated with nanowires for biomedical applications. Ref: Nano Letters 2014

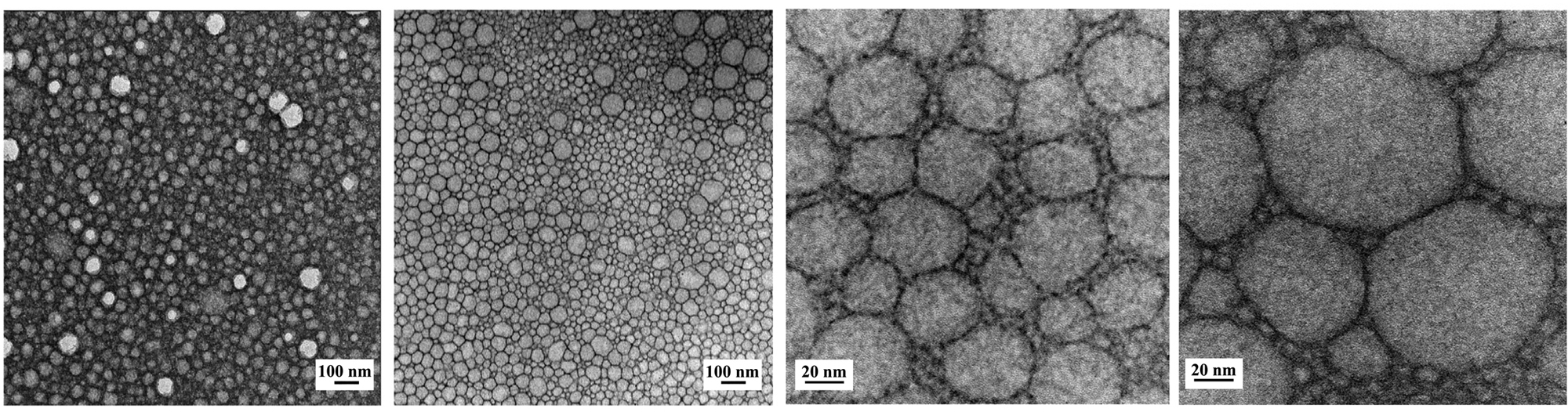

TEM imaging (working voltage 80 kV) of nanoformulations of farmaceutical interest. Refs: Eur. J. Pharmaceutical Sci. 2018, Pharmaceutics 2019
